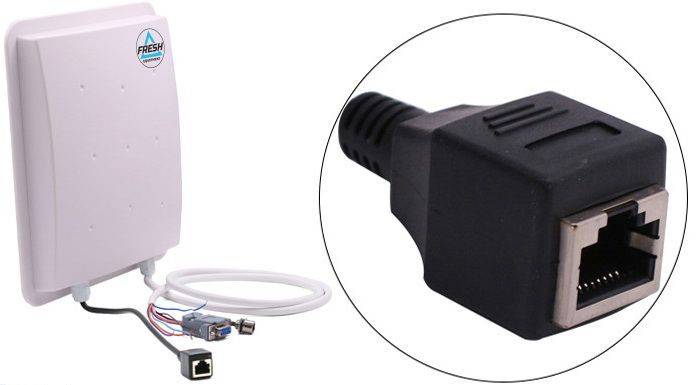

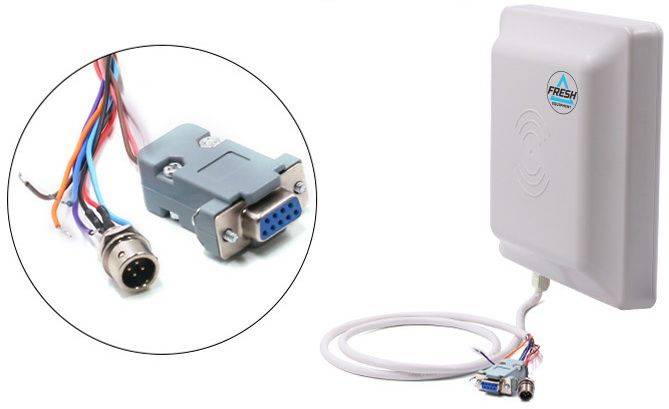

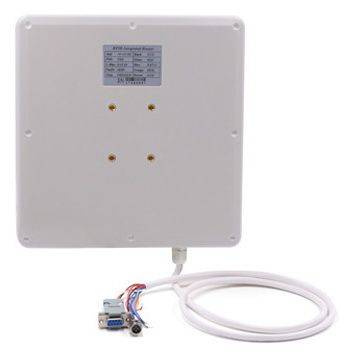

F-920 UHF integrated RFID reader
Product technical parameter
| Model number | F-920, RS232, RS485, Wiegand 26 interface RS232, RS485, Wiegand 26, TCP/IP interface |
| Frequency | 865~868 MHz (EU standard), 902~928 MHz (US standard) |
| Protocol | ISO18000-6B/6C(EPC GEN2) |
| Built-in antenna | 7dbi circular antenna |
| Work mode | Active mode, trigger mode and answer mode (optional) |
| RF power | 30dbm (adjustable) |
| Read distance | 6~8m / 26ft (depends on tag) |
| Interface | RS232 / RS485 / WG26 / TCP / IP, WiFi (optional) NO relay (Dry contact) |
| Power supply | 9V |
| Reader size | 235*235*37mm (US standard) 260*260*45mm (EU standard) |
| Net weight | 1.35kg (US standard) 1.7kg (EU standard) |
| Package size | 360*260*130mm (US standard) 405*305*105mm (EU standard) |
| Pakage goss weight | 1.8kg (US standard) 2.3kg (EU standard) |
| Operating Temp | -10~+55°C |
| Storage Temp | -20~+75°C |
