| Model number |
F-930, RS232, RS485, Wiegand 26 interface, RS232, RS485, Wiegand 26, TCP/IP, WiFi interface |
| Frequency |
865~868 MHz (EU standard), 902~928 MHz (US standard) |
| Protocol |
ISO18000-6B/6C(EPC GEN2) |
| Built-in antenna |
12dbi circular antenna |
| Work mode |
Active mode, trigger mode and answer mode (optional) |
| RF power |
30dbm (adjustable) |
| Read distance |
12~15m / 40~50ft (depends on tag) |
| Interface |
RS232 / RS485 / WG26 / TCP / IP / WiFi (optional) NO relay (dry ct.) |
| Power supply |
9V |
| Reader size |
445*445*55mm |
| Net weight |
3.55kg |
| Package size |
600*500*120mm |
| Pakage goss weight |
5kg |
| Operating Temp |
-10~+55°C |
| Storage Temp |
-20~+75°C |

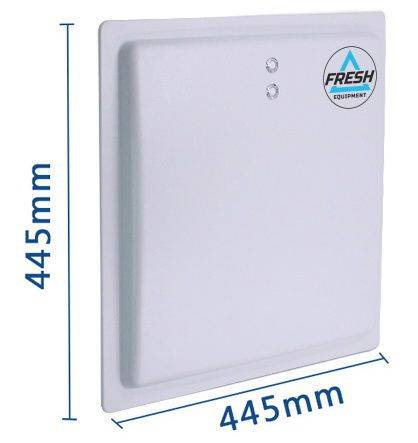

Reader Size: 445*445*55mm

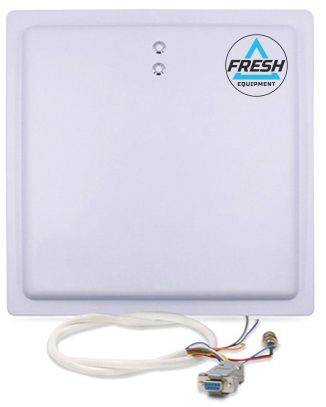

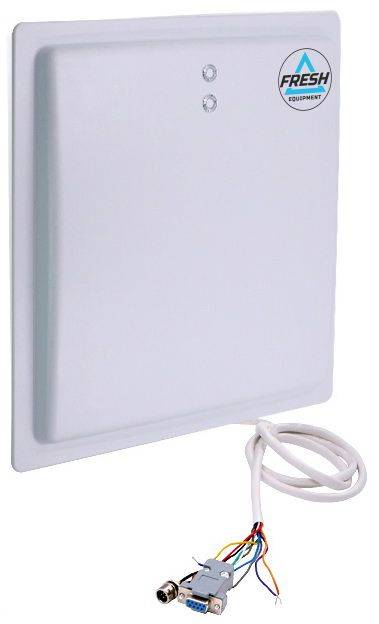

Front side

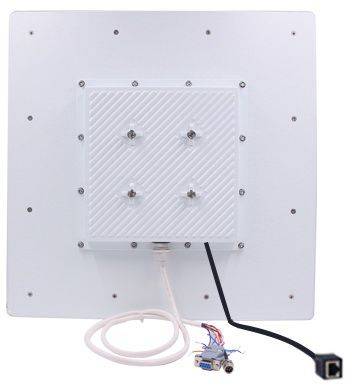

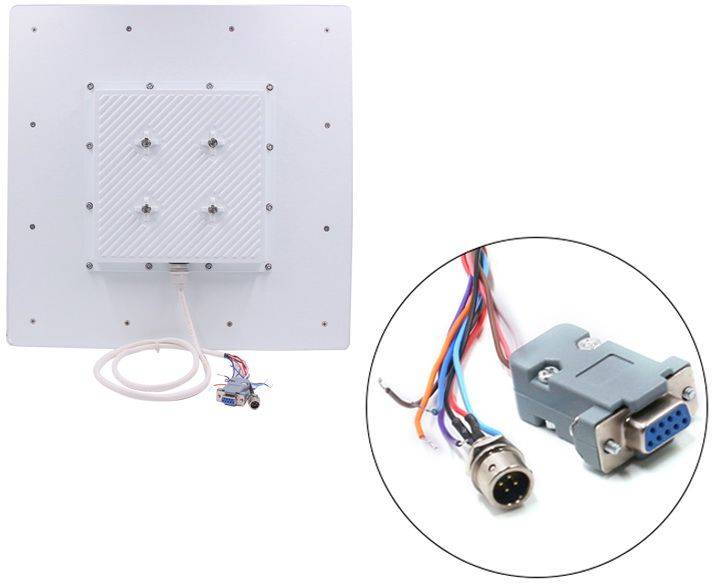

Back side
